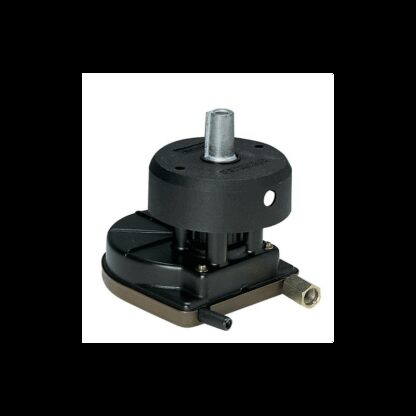

TIMONERIA T67 STEERING SYSTEM T67
Steering system T67 Equipped with clutch. Employs single cable M58. Stainless steel single-cable end. Configuration according to ABYC P17. Made of materials resistant to marine corrosion. Externally adjustable standard clutch. 90 ° installation with black hubcap. The steering unit can be mounted in 4 different positions to allow the cable to exit in the most convenient direction. Number of steering wheel turns: 2.5. Operating stroke: 230 mm. Steering wheel diameter mm. 380. Minimum bending radius of the cable: 200 mm. Maximum working load at the end of the cable: 1200 N (120 Kg.). Certified by NORSKE VERITAS. Complete with black hubcap. Use: boats with outboard engine up to 40 kW (55 hp). With the exception of EVINRUDE E-TEC 50 for which the use of T85, T71 or T91 is recommended. Conforms to EN29775.
